Its been a while since the last update so here it is. These photos are quite a few months old now, but the wiring progress isn’t that visually appealing, so I waited till the end to show it. I spent probably 2-3 months in total completely rewiring a new engine loom. While it was a lot of work its great now to know exactly how every component of the car functions and interacts with everything else. A big thanks to Pete from PLMSdevelopments.com for helping me along the way, it would of been a lot longer process without him.

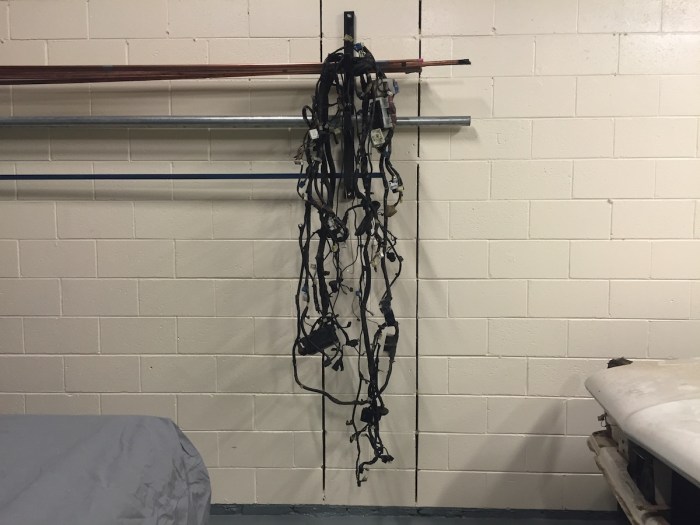

This is the body loom hung up on the wall. As I wasn’t running heaters or A/C I could do away with almost 2/3rds of the standard loom.

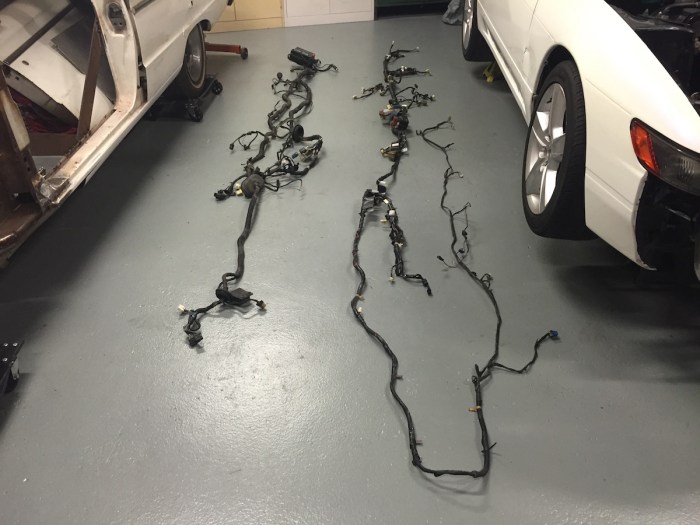

Here is the body and dash loom laid out side by side. All of this was replaced with what you see below. A lot simpler.

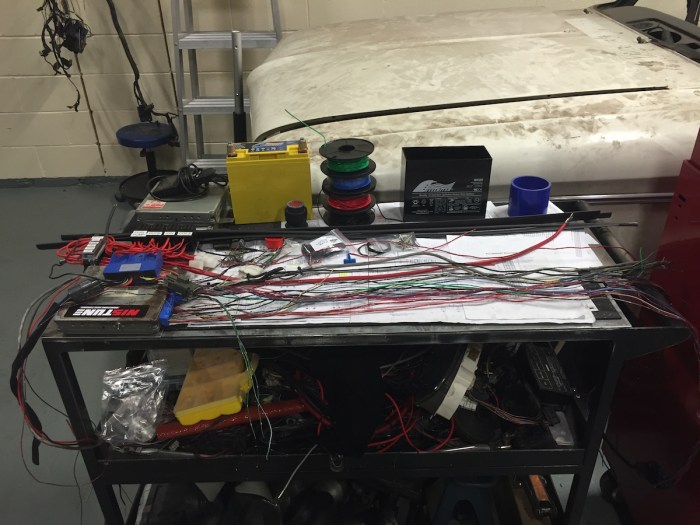

Too many hours spent at this bench.
This is how the under dash side of the new loom now looks. Leaving it uncovered for now incase I need to sort out any bugs. I will pull the whole thing out later on and cover it.

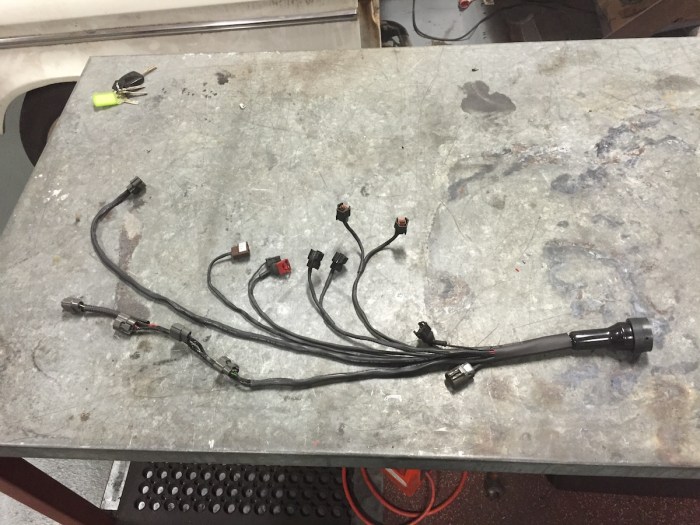

And this the engine bay side of the new loom. Its not finished here and still needs a few sensor plugs added which I haven’t got yet.
